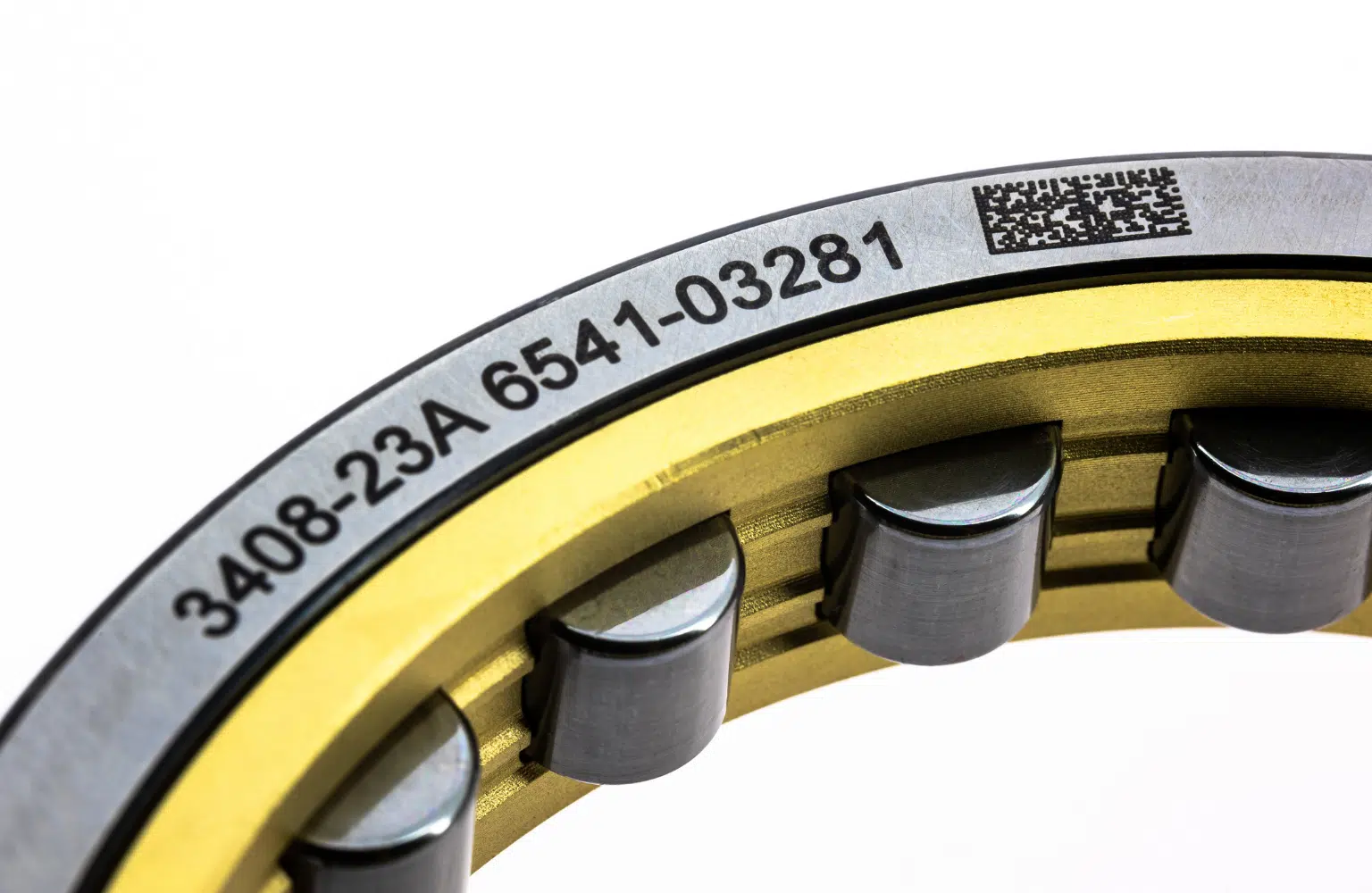

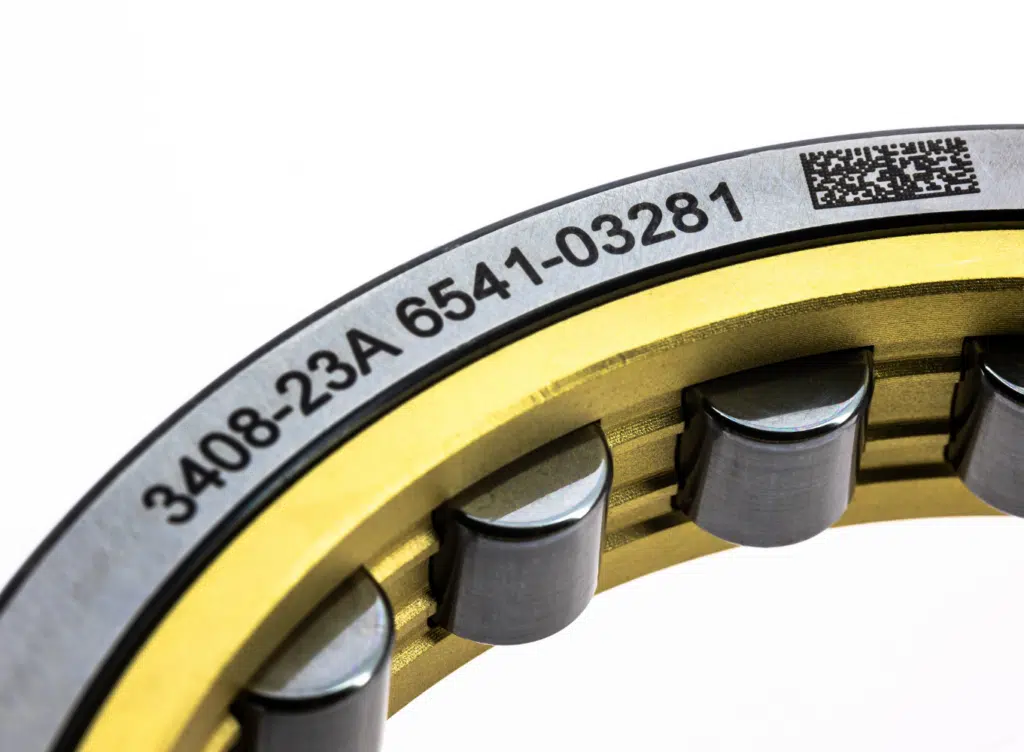

The marking is applied on parts of various shapes: with shoulder, concave, convex and rounded surfaces and inclined planes.

This function offers the possibility of marking within a tolerance of ± 40 mm in relation to the focal plane.
The laser marking quality and speed are conserved.

This function also allows quick reference changes for parts with variable heights.

The benefits:

• Quick and easy to integrate,
• Very high marking rate with no axis movement.
• Working distance adjusted by software

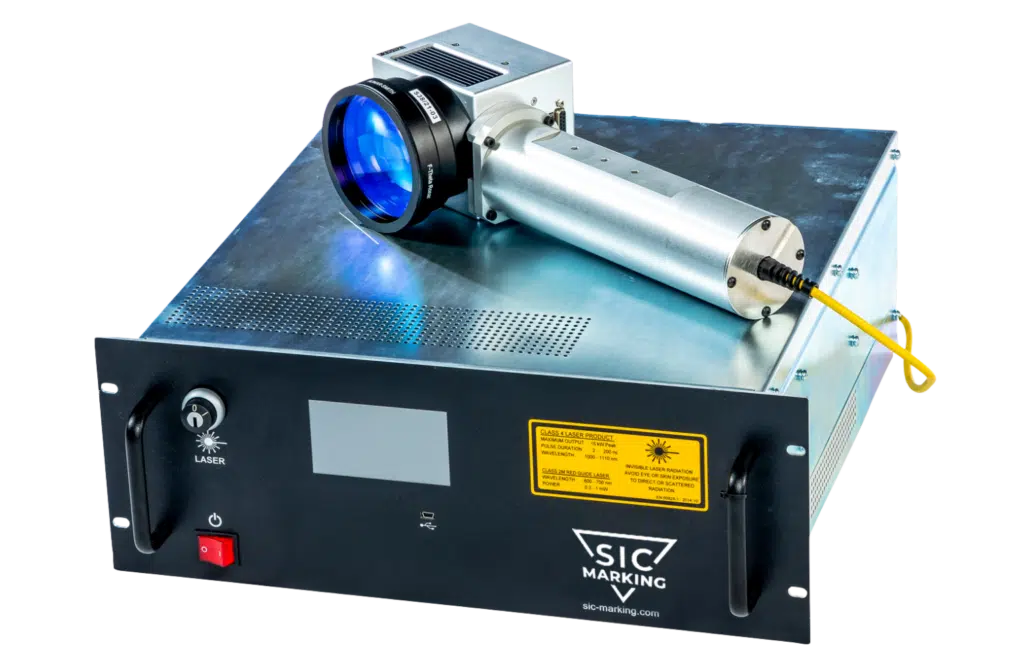

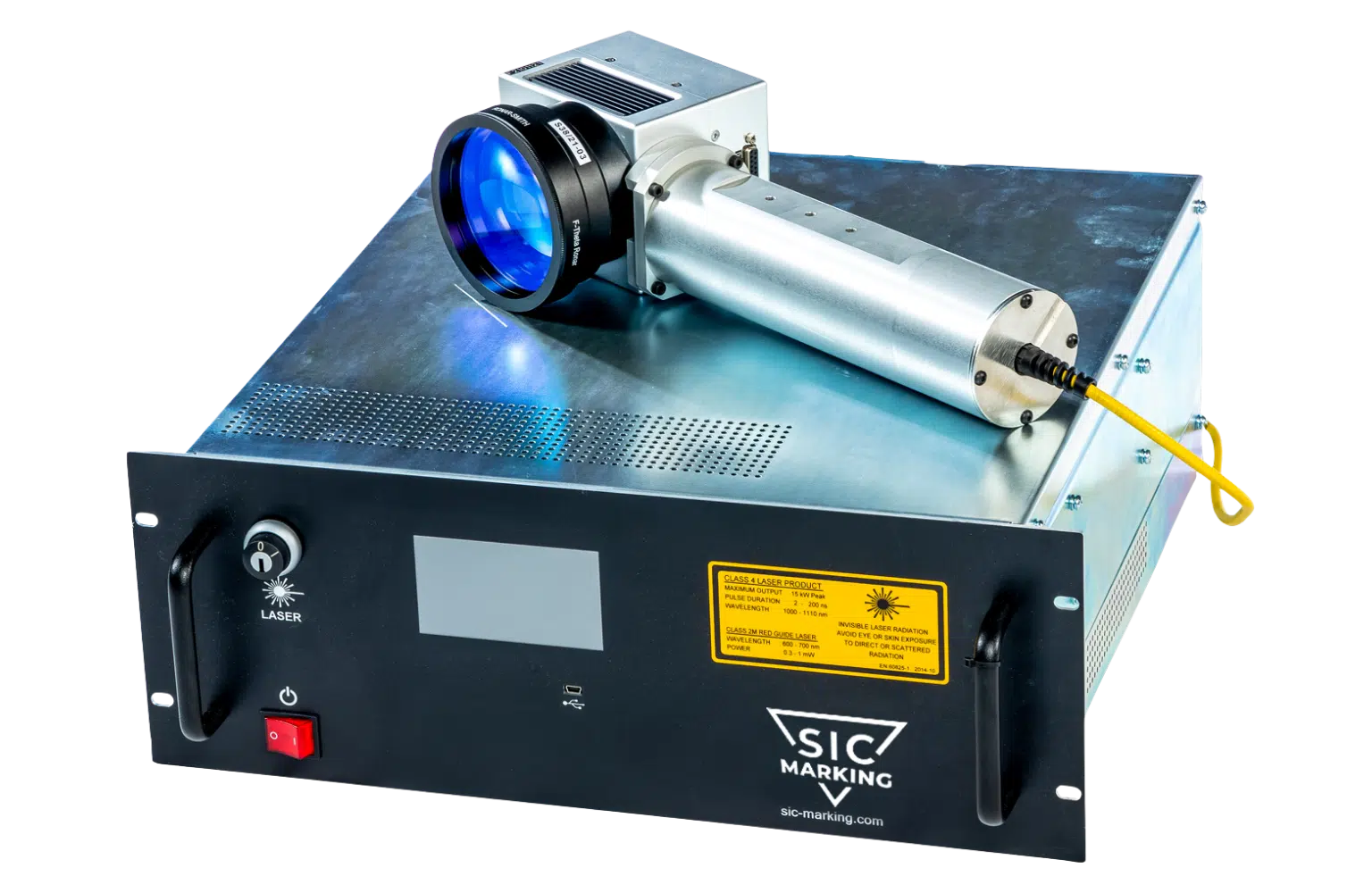

• Compatible with most proposed sources (i104 HD, i104 easy) and BOX stations.

The integrated reading function allows the automatic reading of 2D and 3D codes.
When the cycle is started, the codes are immediately read in the same programme sequence, with no additional movement.

The reader outputs the result of the reading, with any necessary code quality grading.

This data is sent through a network or through inputs/outputs to the cell automatic system or to an external controller.

The proposed system allows the code to be read irrespective of its position in the marking window.

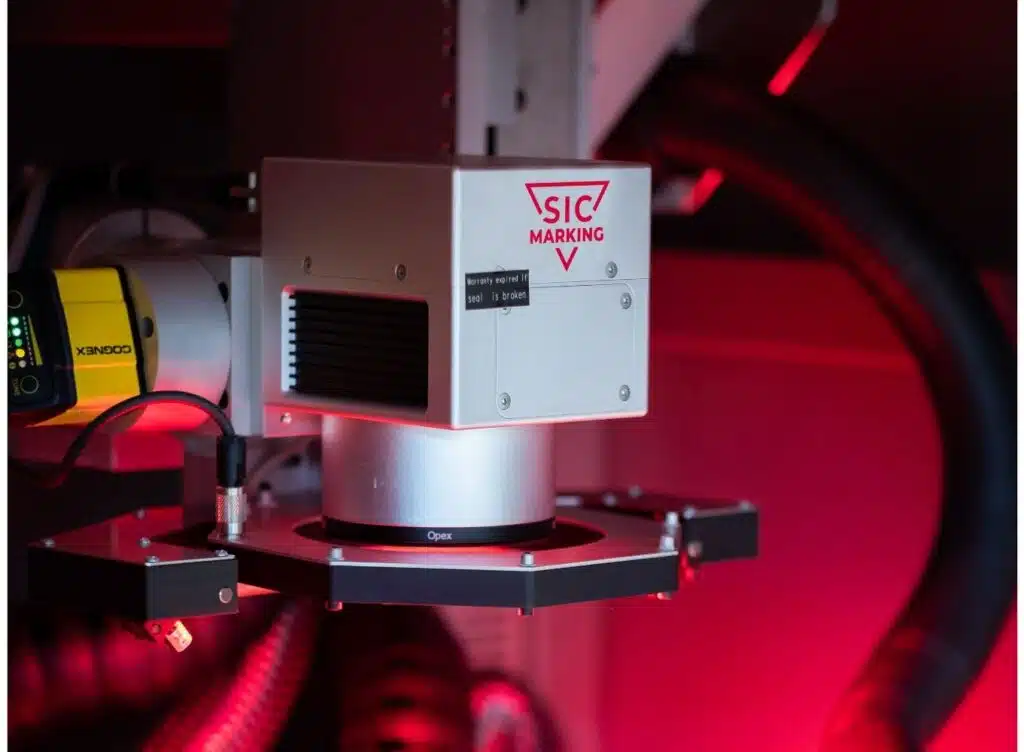

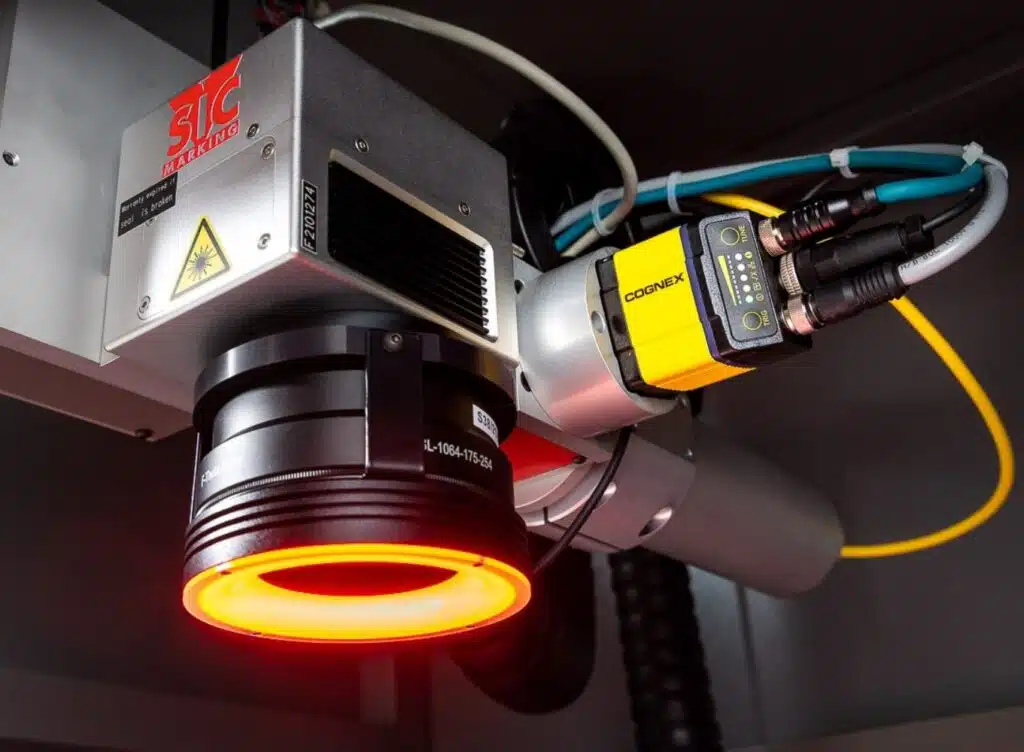

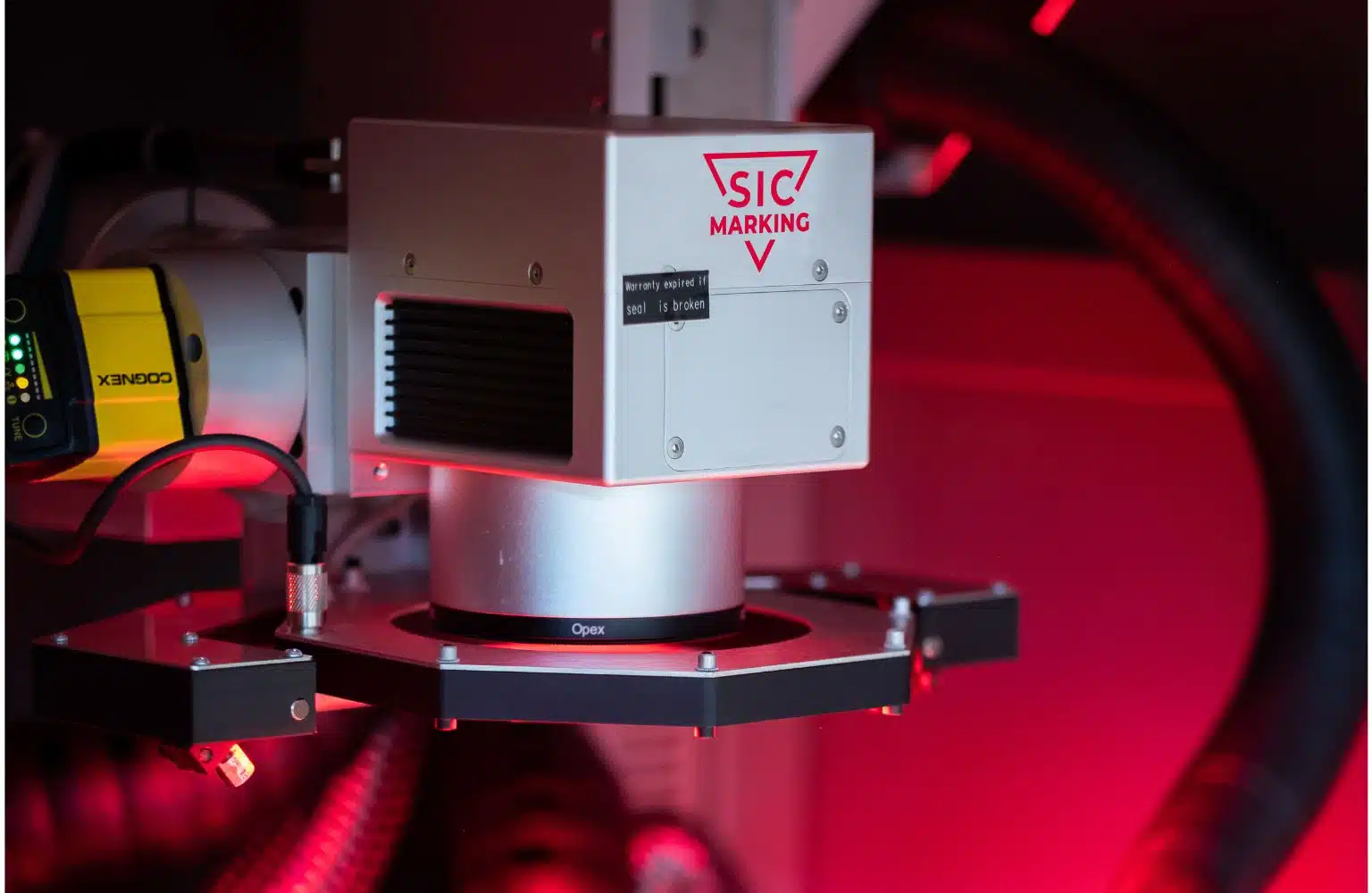

This function has a high resolution camera integral with the laser head.

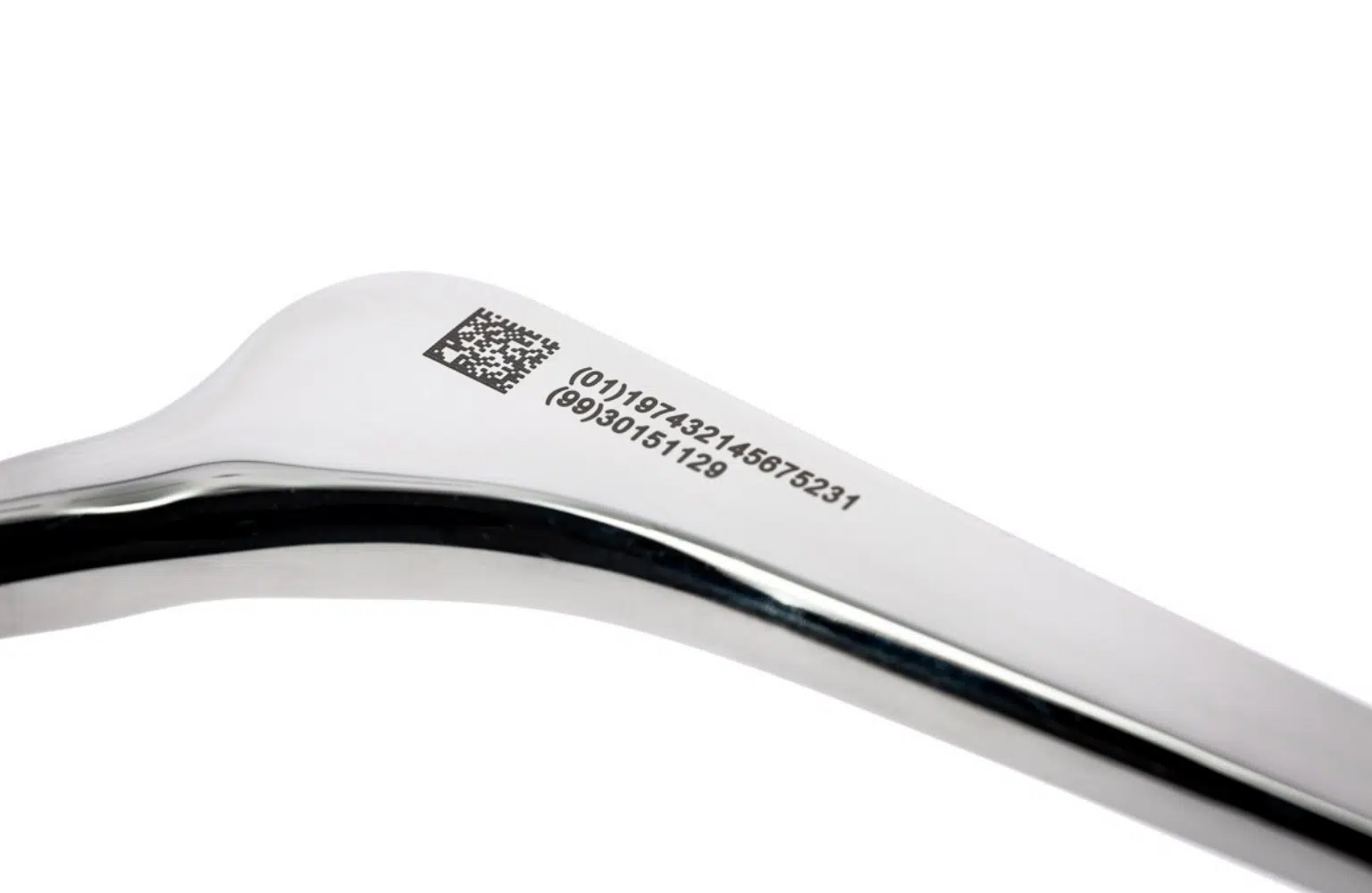

This allows standard 2D codes (QR-Code, Datamatrix) to be read on all types of material and on difficult surface conditions.

It is compatible with HD lasers, Easy and the 3D function,
and is also compatible with the BOX stations.

The benefits:

• Time saving
• Marking and immediate reading, with no movement of the laser head.
• Reading is perfectly aligned with the code, there is no image distortion.
• Code quality checked based on the criteria of standards ISO 29158 and ISO 15415.

SIC Marking laser marking machines can be connected to an industry network.

Our systems come equipped with many connection possibilities (digital I/O, Ethernet TCP/IP, RS232), and they also offer many possibilities for dialogue with all the elements of their environment.
Our machines can very easily be integrated and interfaced in all production lines that use Profinet, Profibus or Ethernet IP field buses, through optional communication boards and simple software solutions.

The benefit:

This solution allows fast integration into an automatic systems structure based on standard industrial networks.
