Laser Marking Station e.L-BOX

Robust
Secure
All-in-One
e.L-BOX è una stazione di marcatura laser all-in-one. Offre un'interfaccia intuitiva e facile da usare, semplificando l’utilizzo per gli operatori
Description

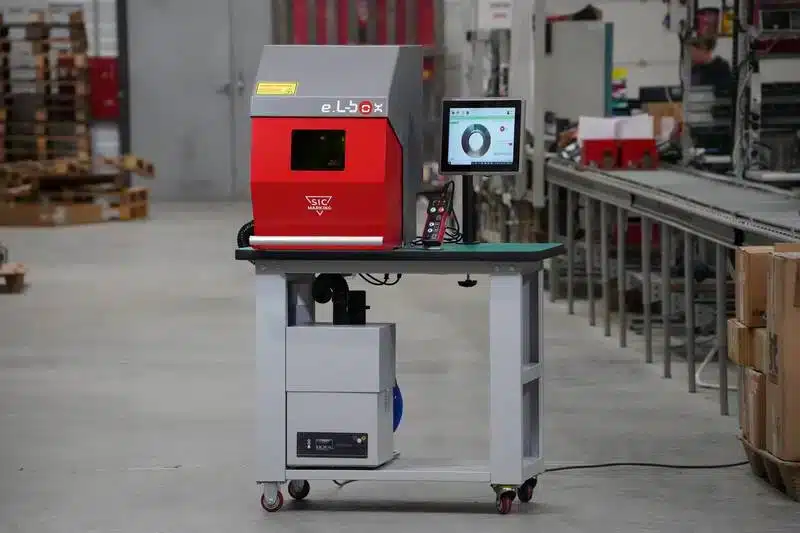

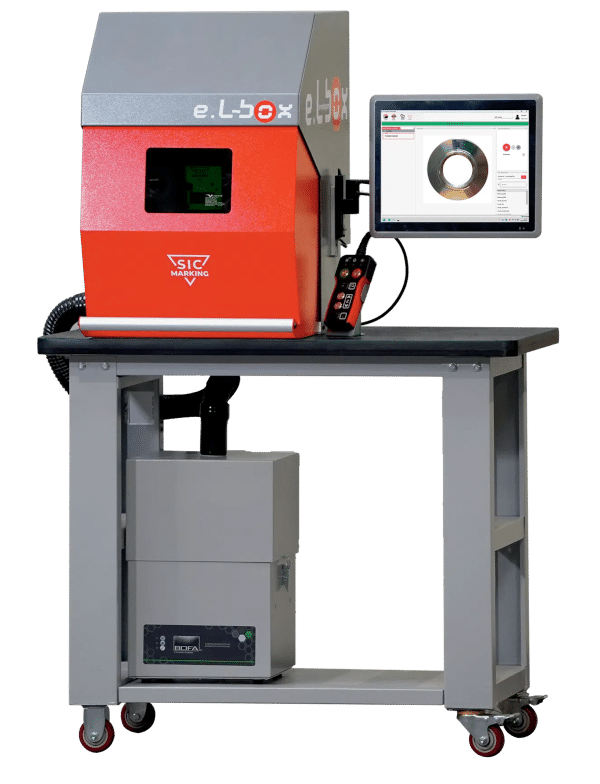

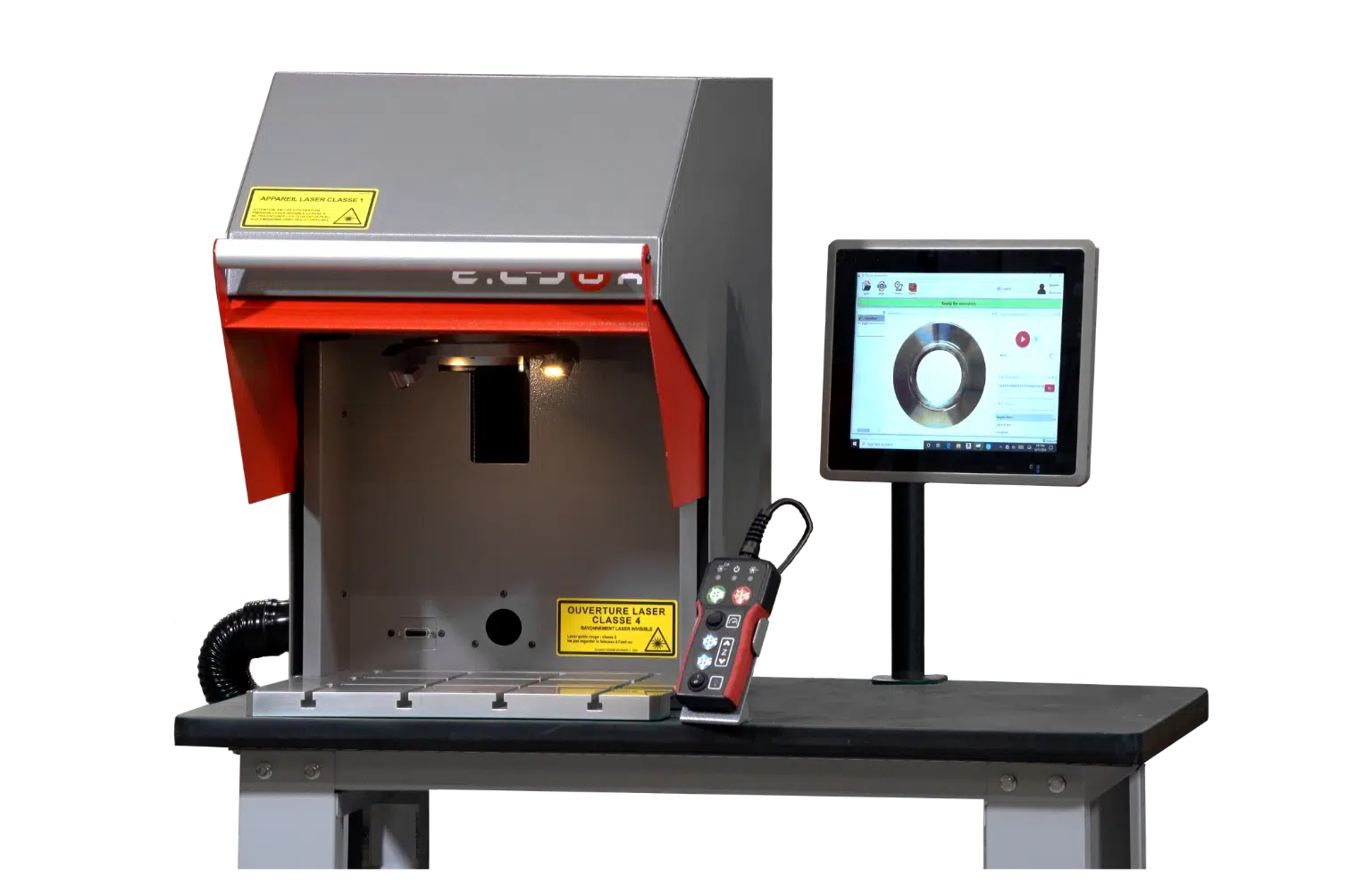

The e.L-BOX is an all-in-one laser marking station. It offers an intuitive, user-friendly interface, simplifying its use for operators.



Thanks to its compact, ergonomic design, the marking station integrates easily into any production space.



Its reliability and durability guarantee optimum performance, even in demanding industrial environments.



Compatible with the latest traceability standards, it meets the needs of the most demanding industries.

This turnkey solution enables you to increase productivity while ensuring impeccable marking quality.

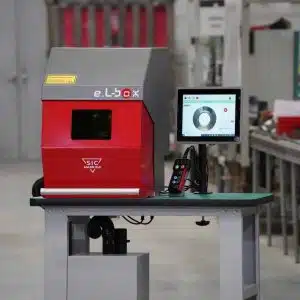

fabricant de solution de gravage à laser fibré

MARKING STATION ROBUST & SECURE



  • Class 1 security station compliant with ISO 60825-1. Measured and certified according to a strict validation protocol.
  • Simple, robust design, all-steel housing, suitable for harsh industrial environments.
  • Reliable, long-life fiber laser technology. Maintenance-free, no wearing parts.

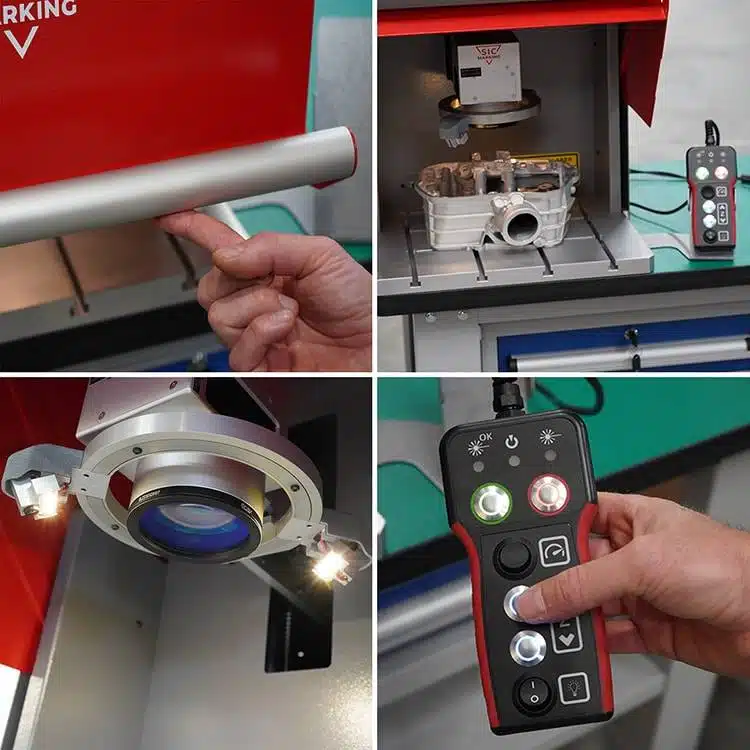

machine de marquage laser fibré

ALL-IN-ONE, ERGONOMIC LASER SOLUTION



  • All-in-one, ready-to-use, easy-to-position solution, suitable for seated or standing work.

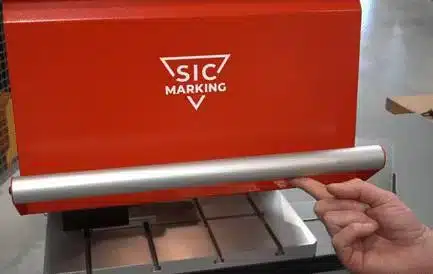

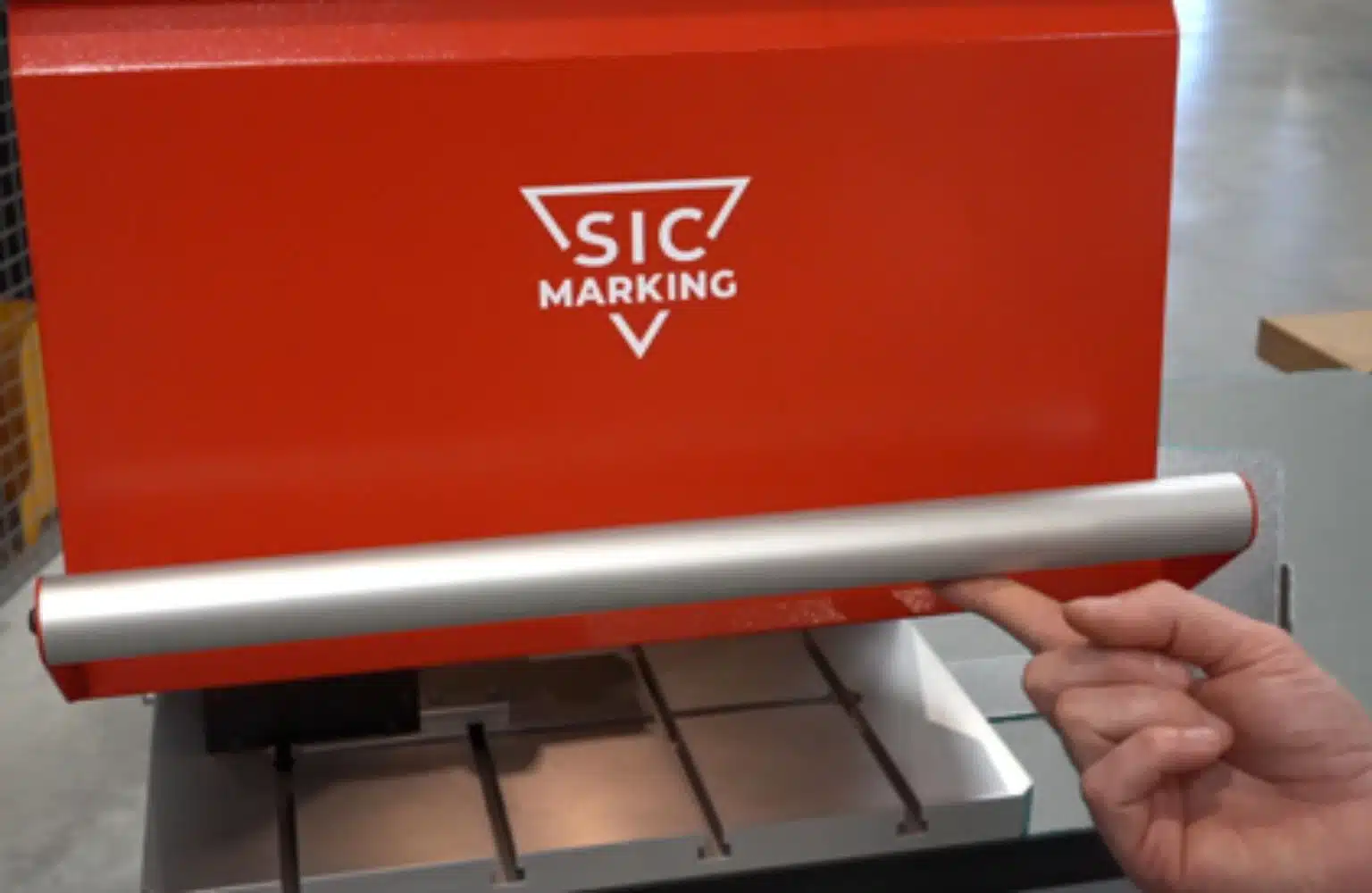

  • Balanced, lightweight door for effortless opening.

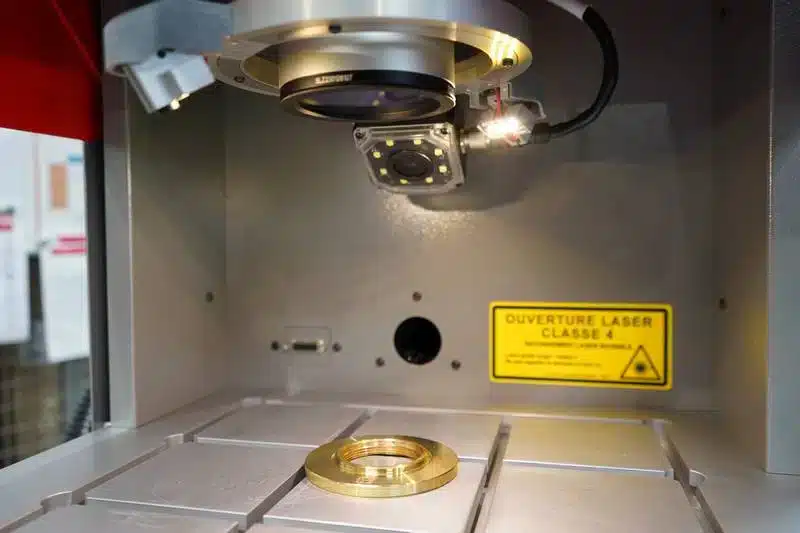

  • Laser station with motorized axis, laser pointers for fast and precise adjustment of focal distance.

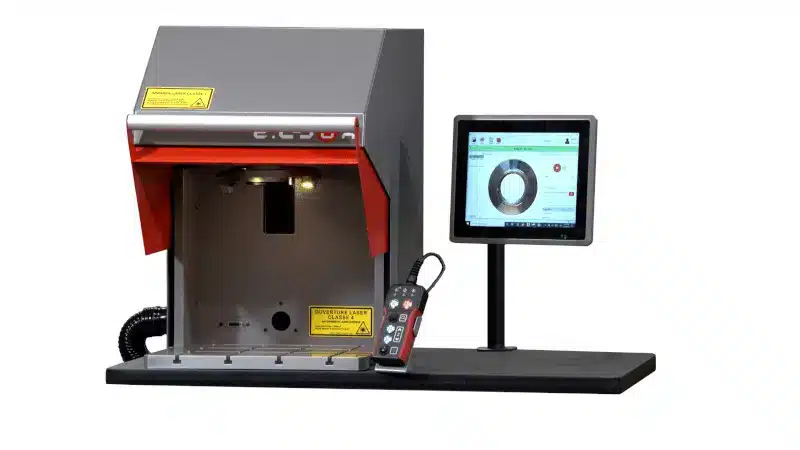

  • Opening on 3 sides for improved accessibility to marking area.

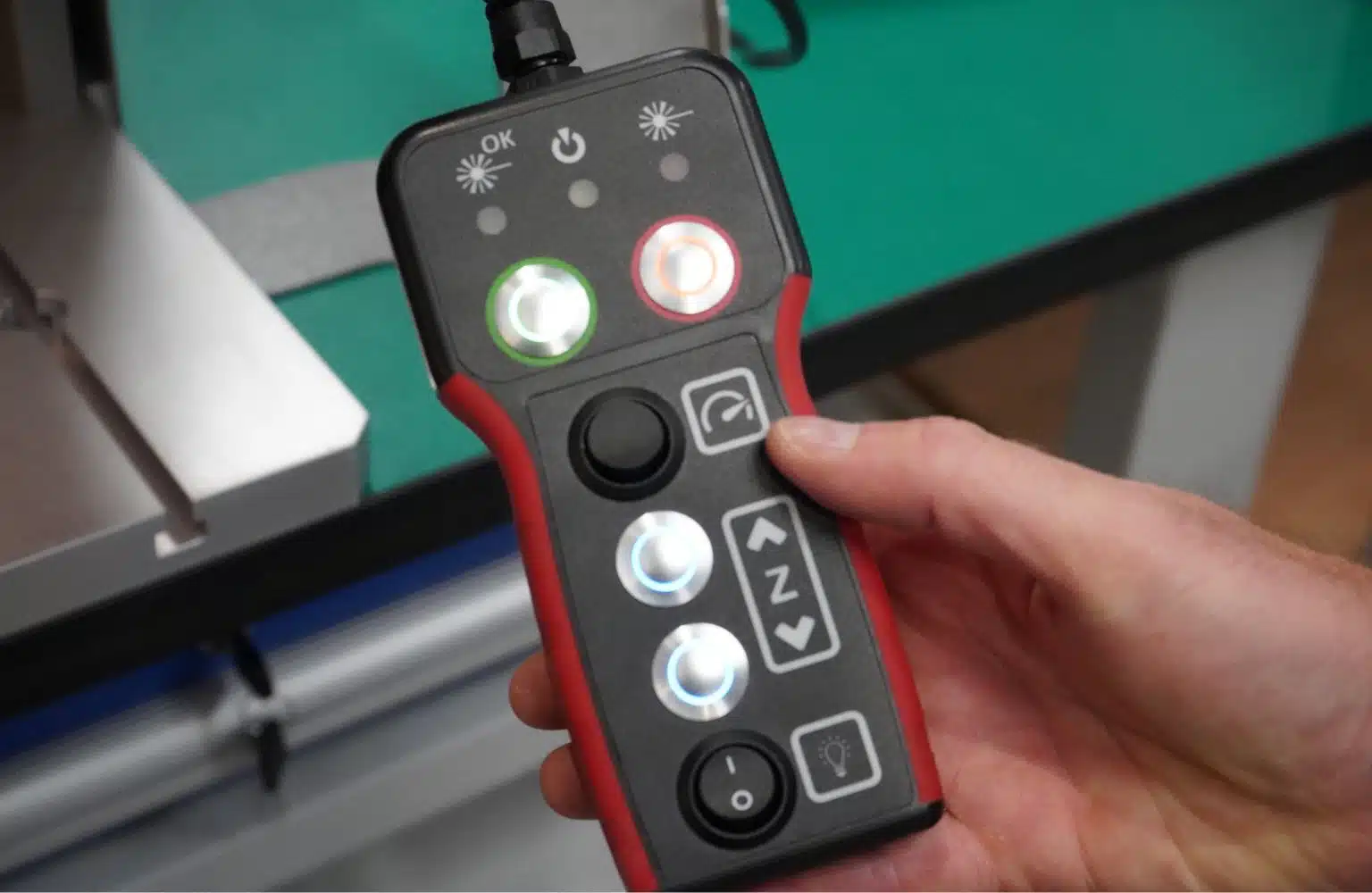

  • Magnetic control unit for free positioning and improved workstation ergonomics.

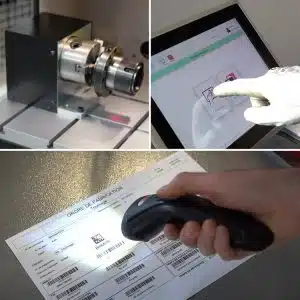

machine de gravage laser pour pièce cylindrique
FLEXIBLE AND EASY TO USE

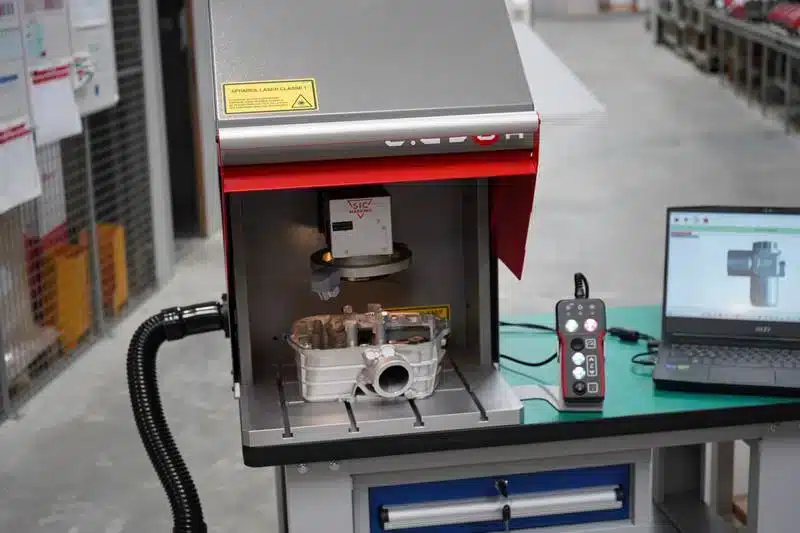

  • Grooved table supports heavy loads. Easy installation of tools and accessories.

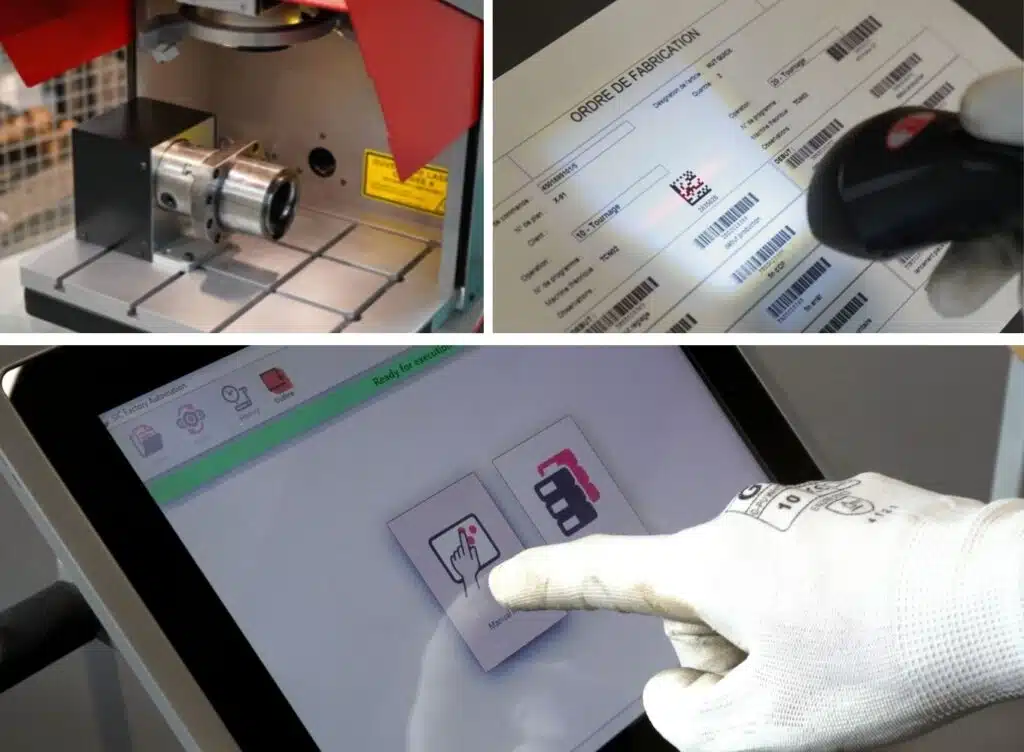

  • Rotary axis for marking cylindrical parts (see accessories and options).
  • SIC FACTORY AUTOMATION SOFTWARE on touchscreen HMI. Simple and easy to use.
  • Data entry by barcode scan (error-free operation by the operator).
  • Large working volume 385 x 330 x 370 mm. Maximum focal length: 190 mm.

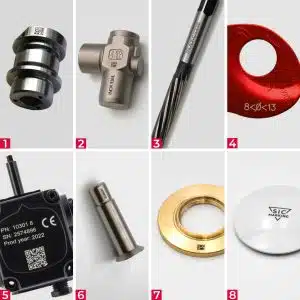

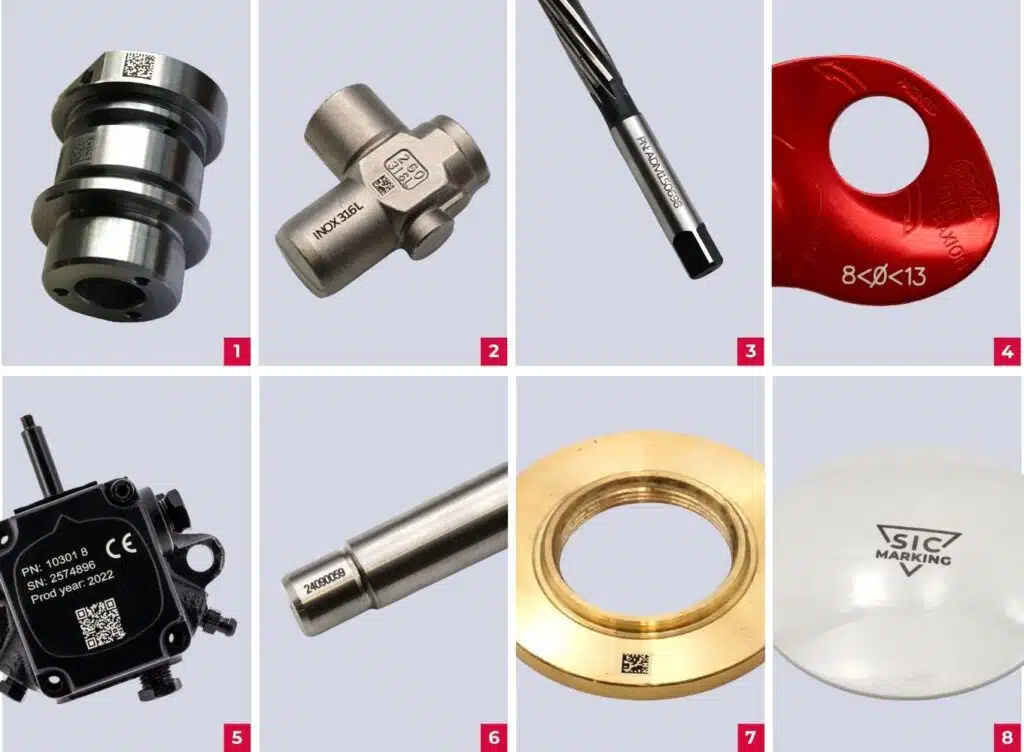

Esempi di materiali marcati laser con stazione e.L-BOX

FIBER LASERS, A VERSATILE TECHNOLOGY FOR MAKING A WIDE VARIETY OF MATERIALS



  1. Steel
  2. Stainless steel
  3. Tungsten carbide
  4. Anodized materials
  5. Painted materials
  6. Alloys
  7. Brass
  8. Polymers (Validation test required)

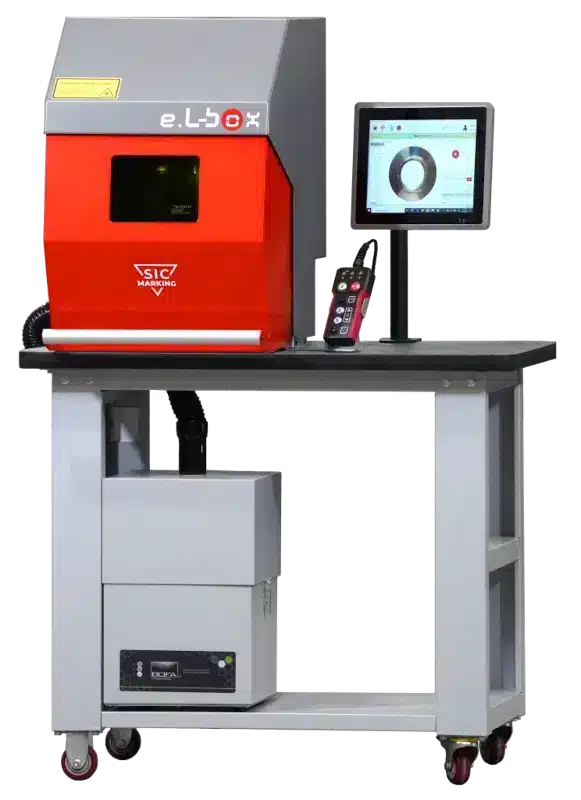

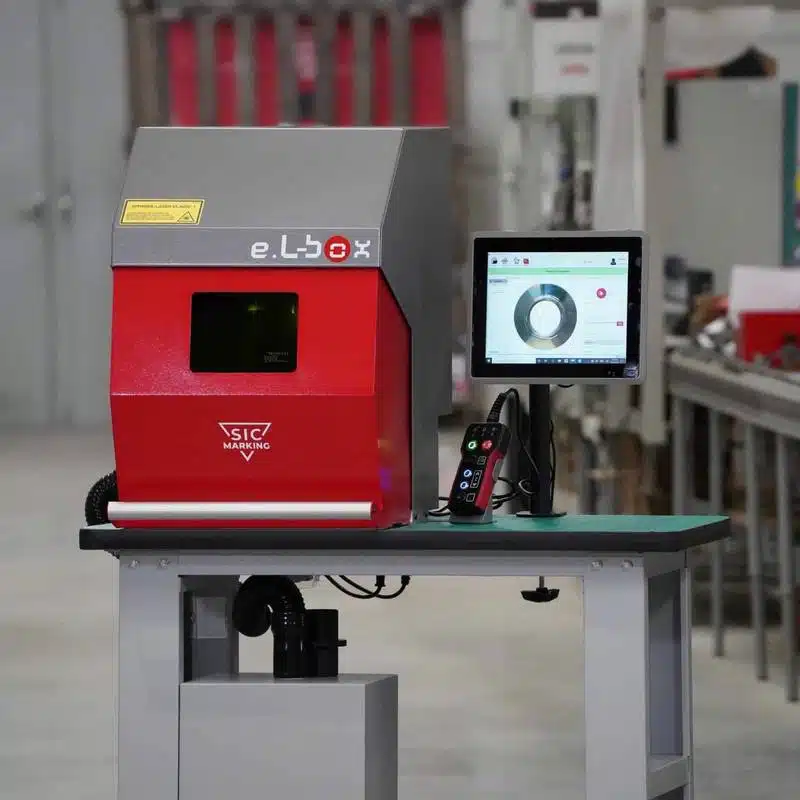

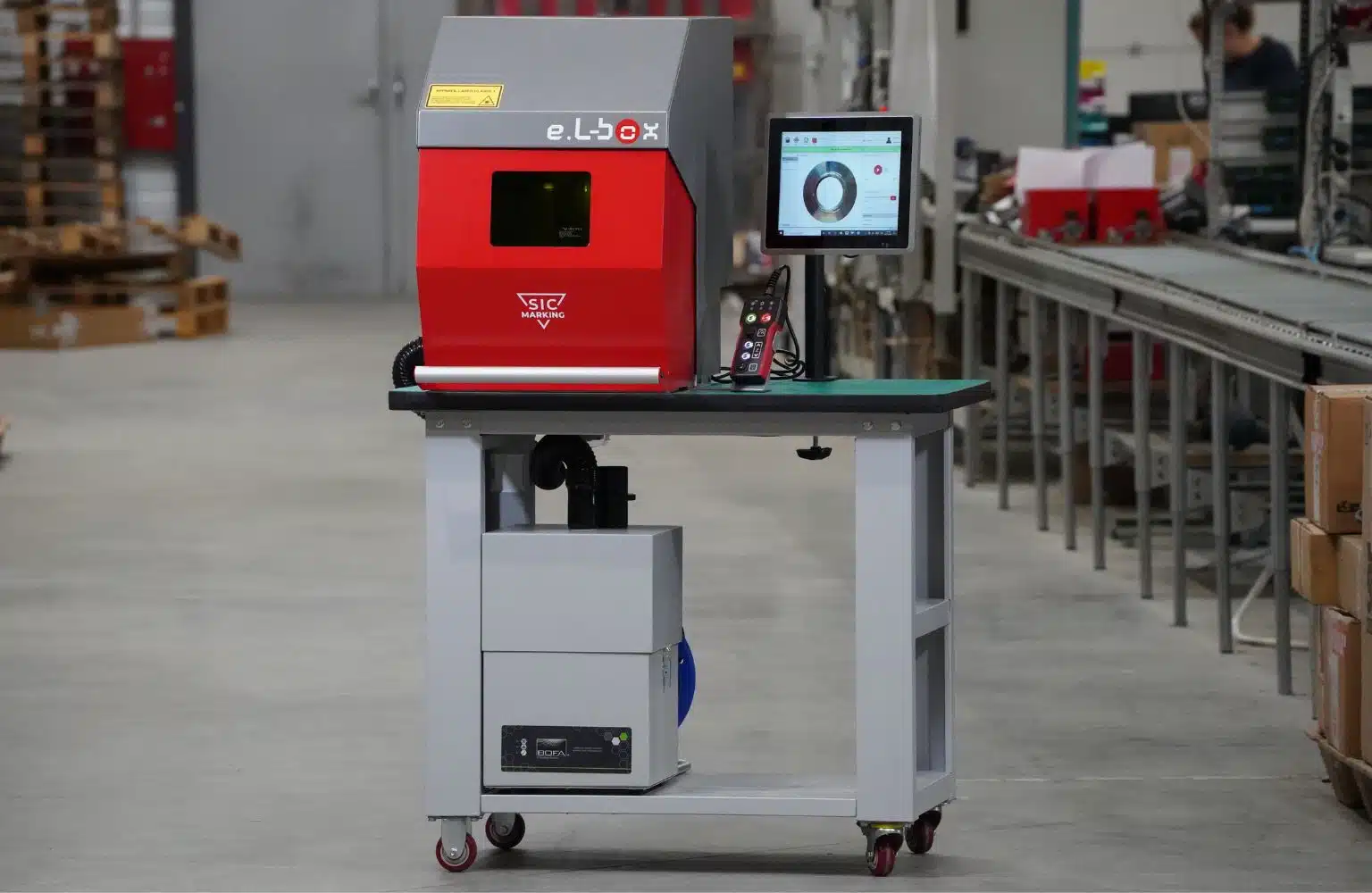

e.L-BOX in pictures

machine de gravage laser fibré avec axe rotatif 0.L BOX
Play video

Technical specifications

Marking Window

100 x 100 mm – 170 x 170 mm

Standard focusing distance

Up to 190mm

Weight

70Kg

Security

Laser class 1

Source

Fiber Laser

Operating mode

Pulsed (variable frequency)

Wavelength

1064 nm

Average power

20W, also available in 30W

Focal length adjustment

Integrated laser pointer

Cooling

Air only

Integrated red laser guide

Yes

Software

SIC LASER PC or SIC Factory automation (optional)

Available accessories:

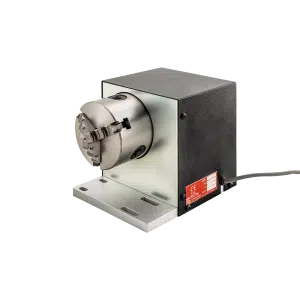

Rotary Axis

The rotary axis enables marking on cylindrical or series parts in rotation, ensuring precise and uniform marking across the entire surface. It optimizes productivity by automating the marking process without manual repositioning.

SIC Factory Automation

This integrated management software simplifies the automation of marking tasks. It provides complete control over machines, production data management, and workflow optimization to improve productivity and reduce human errors.

Panel PC with touch screen

The integrated Panel PC with a touchscreen offers an intuitive and ergonomic interface for easy control and configuration of the laser station. It ensures a smooth and quick user experience for managing marking tasks.

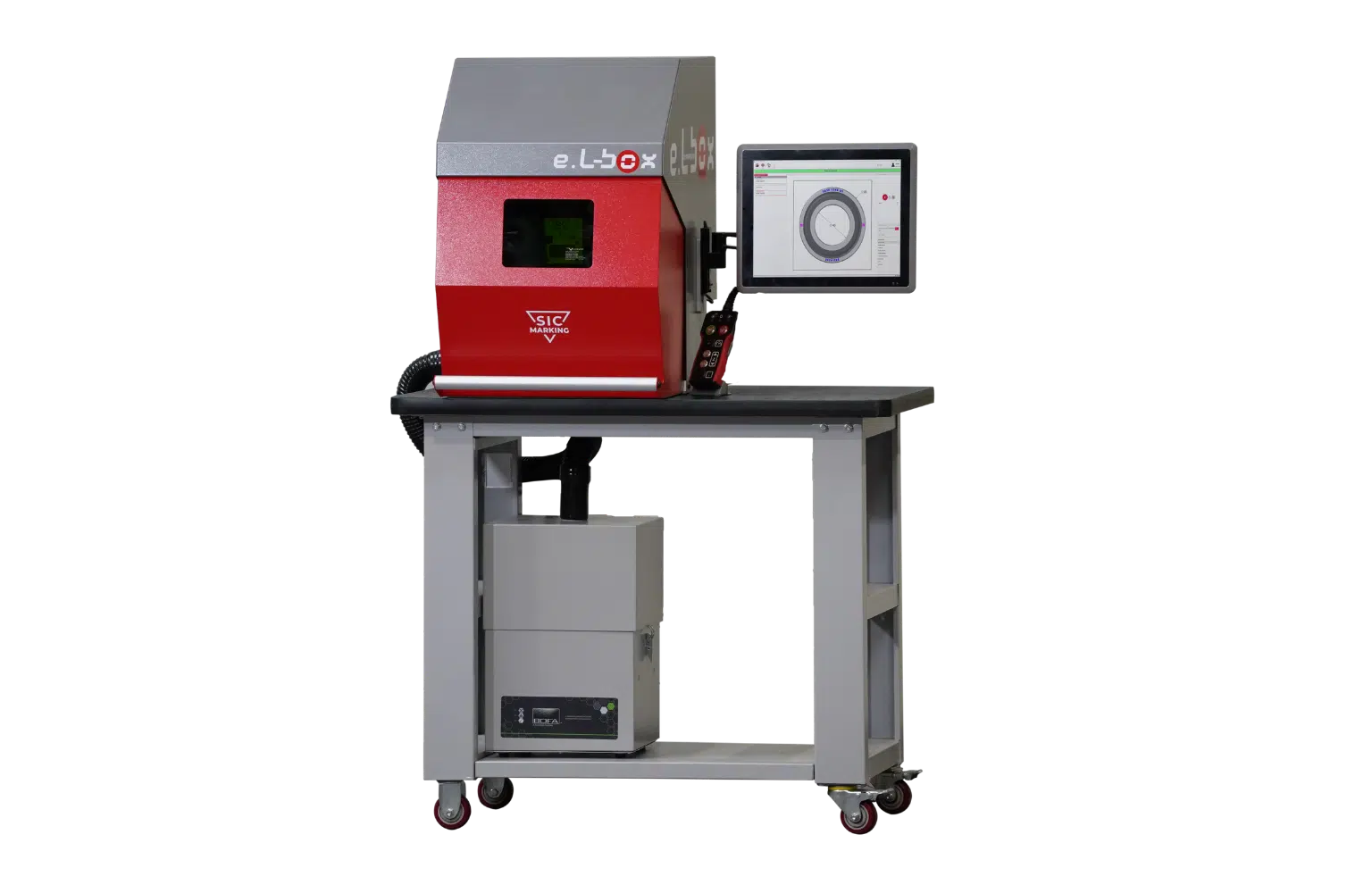

Workbench on wheels

The mobile workbench allows flexible positioning of the laser station, making installation and movement within the workshop easier. It provides optimal stability for precise work while offering easy mobility.

Smoke Extractor

The fume extractor efficiently removes gases and particles produced during laser marking. It ensures a healthy working environment by filtering and evacuating fumes, preserving air quality and operator safety.

Contact us

Need information ?

Contact one of our experts !

OUR solutions

Explore our products

Take a look at our flagship laser marking, dot peen marking and scribing equipment, used for our portable machines, integrated modules for lines or stand-alone marking stations.

e.L-BOX è una stazione di marcatura laser all-in-one. Offre un'interfaccia intuitiva e facile da usare, semplificando l’utilizzo per gli operatori

e.L-BOX

Robust
Secure
All-in-One

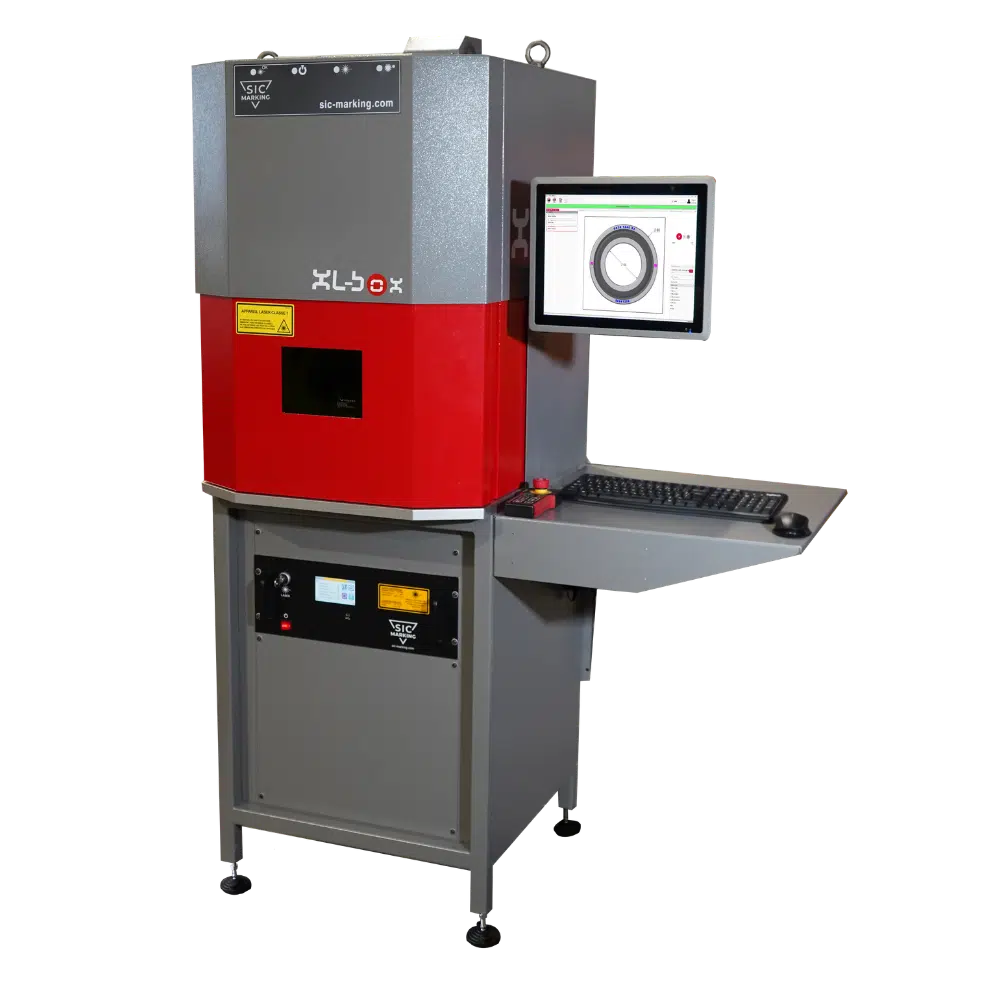

industrial laser marking station XL Box

XL-BOX

Large workspace
Choice of manual / motorised axes
Can be integrated into robotic cells
XXl BOX extra large laser marking machine for industrial parts

XXL-BOX

Standard or custom
Large parts
Full modularity

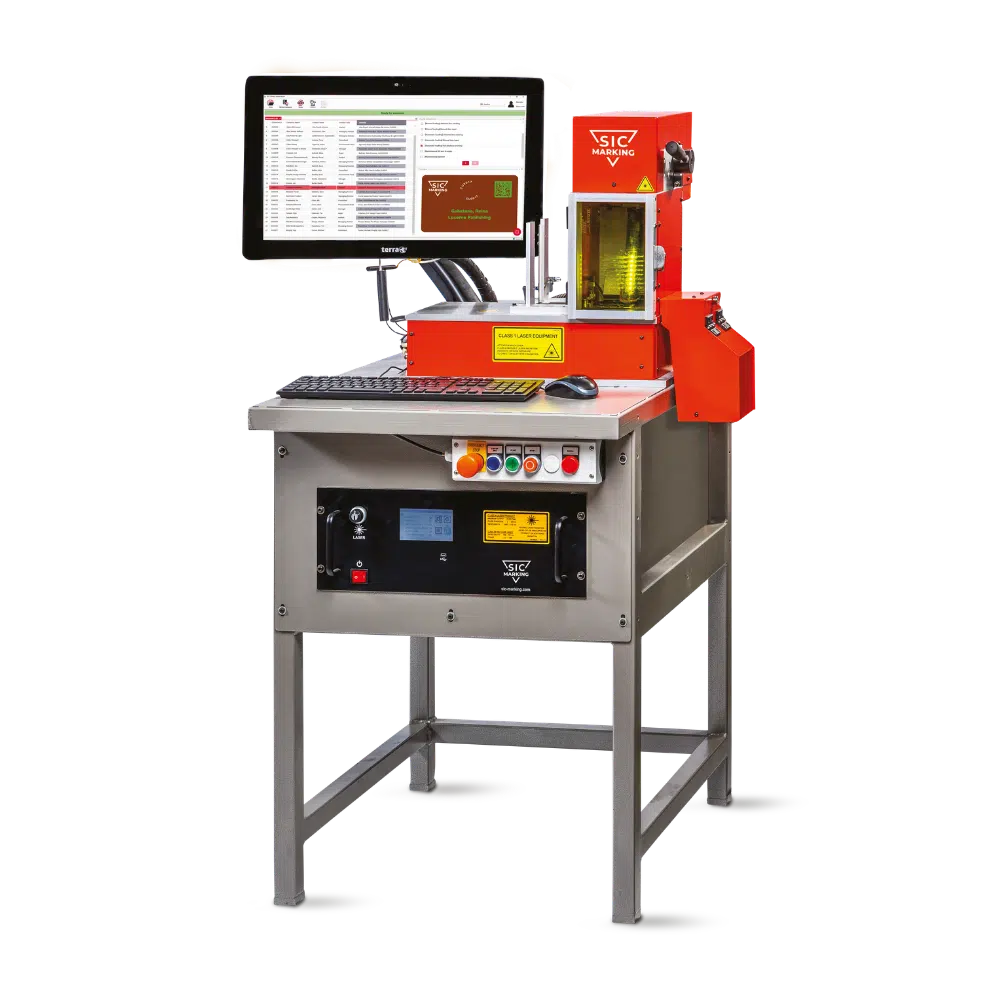

automated laser marking station TAGMARK
